| Item Reference | 798KK3 |
|---|---|
| Brand | LEESON |
| Weight (lb) | 29.6 |
| Length (in) | 14.9 |
| Width (in) | 11 |
| Height (in) | 11.9 |
| Harmonization Code | 8501514040 |
| Country of Origin | United States |

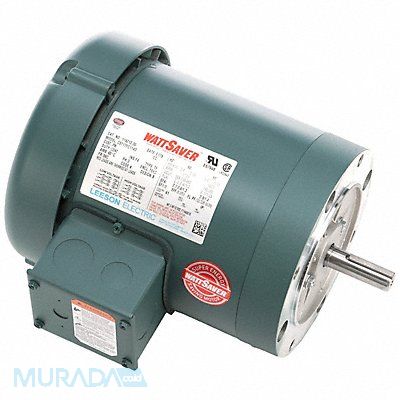

General Purpose Motors Three Phase Motor Design 3-Phase 3/4 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 2.5-2.4/1.2 56C Frame Usable @ 208V Yes Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection T-Stat Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Totally Enclosed Air-Over Motor Shaft Rotation Reversible Motor Mounting Type Face Motor Mounting Position Horizontal
Mfr 11421300
