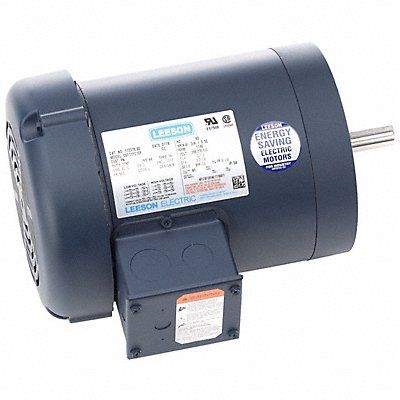

General Purpose Motors Three Phase Motor Design 3-Phase 3/4 HP Nameplate RPM 1 140 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 3.0/1.5 56C Frame Usable @ 208V Yes Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class B NEMA Design B Motor Enclosure Design Totally Enclosed Air-Over Motor Shaft Rotation Reversible Motor Mounting Type Face Motor Mounting Position Horizontal
Mfr 11237800
| Item Reference | 798KK2 |
|---|---|
| Brand | LEESON |
| Weight (lb) | 31.2 |
| Length (in) | 14.7 |
| Width (in) | 11.1 |
| Height (in) | 11.9 |
| Harmonization Code | 8501514040 |
| Country of Origin | United States |
