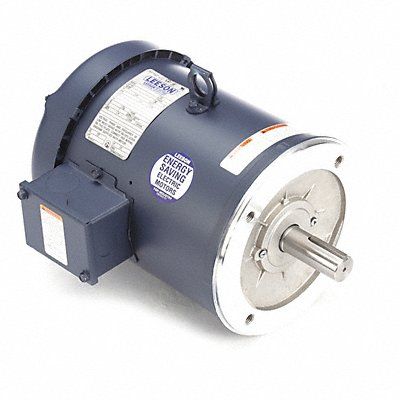

50 Hz Motor Three Phase Motor Design 3-Phase 3 HP Nameplate RPM 1 425 No of Speeds 1 Voltage 220/380/440V AC Full Load Amps 8.2/4.7/4.1 182TC Frame Usable @ 208V No Usable @ 200V No Hz 50 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Face Motor Mounting Position Horizontal
Mfr 13150600
| Item Reference | 4GUX1 |
|---|---|
| Brand | LEESON |
| Weight (lb) | 62.6 |
| Length (in) | 18 |
| Width (in) | 13.8 |
| Height (in) | 14 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |
