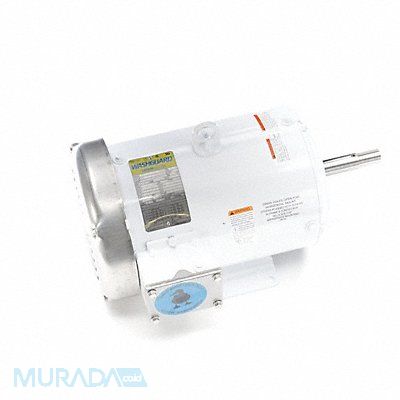

LEESON Washdown Motor 184JM Frame 208-230/460V, 61KJ26

backorder
item
18FWD1204
Mfr 13244600
Brand
Rp. 70,128,500.00
item
Washdown Motor Three Phase Motor Design 3-Phase 7 1/2 HP Nameplate RPM 3 510 No of Speeds 1 Voltage 208-230/460V Full Load Amps 8.80 A 184JM Frame Usable @ 208V Yes Usable @ 200V No 60 Hz Motor Service Factor 1.2 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
Mfr 13244600
More Information
Item Reference61KJ26
BrandLEESON
Weight (lb)90
Length (in)17.94
Width (in)13.06
Height (in)12.88
Harmonization Code8501524000
Country of OriginMexico
Washdown Motor Three Phase Motor Design 3-Phase 7 1/2 HP Nameplate RPM 3 510 No of Speeds 1 Voltage 208-230/460V Full Load Amps 8.80 A 184JM Frame Usable @ 208V Yes Usable @ 200V No 60 Hz Motor Service Factor 1.2 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
Mfr 13244600
