| Item Reference | 61KJ25 |
|---|---|
| Brand | LEESON |
| Weight (lb) | 89 |
| Length (in) | 17.94 |
| Width (in) | 13.06 |
| Height (in) | 12.69 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |

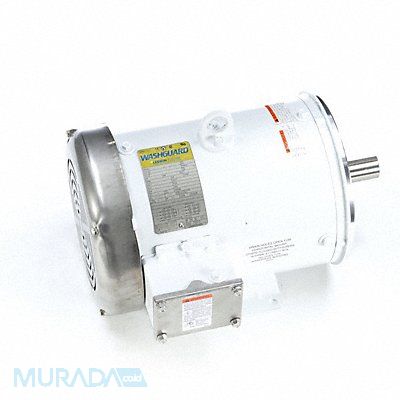

Washdown Motor Three Phase Motor Design 3-Phase 1 1/2 HP Nameplate RPM 1 170 No of Speeds 1 Voltage 230/460V AC Full Load Amps 2.60 A 182TC Frame Usable @ 208V No Usable @ 200V No 60 Hz Motor Service Factor 1.2 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
