| Item Reference | 60PV41 |
|---|---|
| Brand | LEESON |
| Weight (lb) | 45 |
| Length (in) | 14 |
| Width (in) | 11.13 |
| Height (in) | 10.25 |
| Harmonization Code | 8501524000 |
| Country of Origin | China |

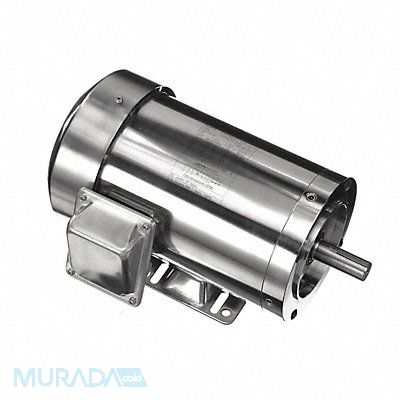

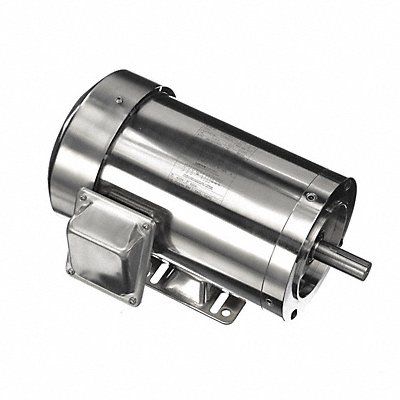

Washdown Motor Three Phase Motor Design 3-Phase 1 1/2 HP Nameplate RPM 3 510 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 4.2-3.8/1.90 143TC Frame Usable @ 208V Yes Usable @ 200V No 60/50 Hz Motor Service Factor 1.2 Motor Thermal Protection Manual Ins. Class F Max Ambient Temp 40 Degrees F Duty Cycle Continuous NEMA Design B Removable Base No Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Rigid Base
