| Item Reference | 60PV29 |
|---|---|
| Brand | LEESON |
| Weight (lb) | 41 |
| Length (in) | 17.94 |
| Width (in) | 13.06 |
| Height (in) | 12.88 |
| Harmonization Code | 8501524000 |
| Country of Origin | United States |

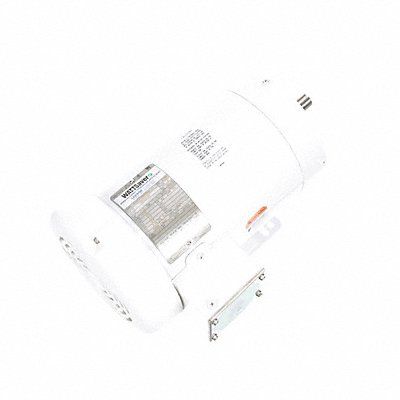

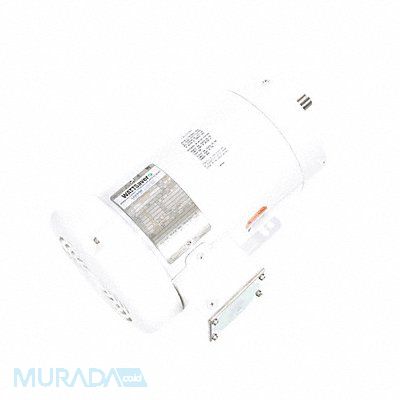

Washdown Motor Three Phase Motor Design 3-Phase 2 HP Nameplate RPM 1 745 No of Speeds 1 Voltage 575V AC Full Load Amps 2.3 145TC Frame Usable @ 208V No Usable @ 200V No 60 Hz Motor Service Factor 1.2 Motor Thermal Protection Manual Ins. Class F Max Ambient Temp 40 Degrees F Duty Cycle Continuous NEMA Design B Removable Base No Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
Mfr 12233000
