| Item Reference | 60PV27 |
|---|---|
| Brand | LEESON |
| Weight (lb) | 40 |
| Length (in) | 20 |
| Width (in) | 11.2 |
| Height (in) | 11.7 |
| Harmonization Code | 8501524000 |
| Country of Origin | United States |

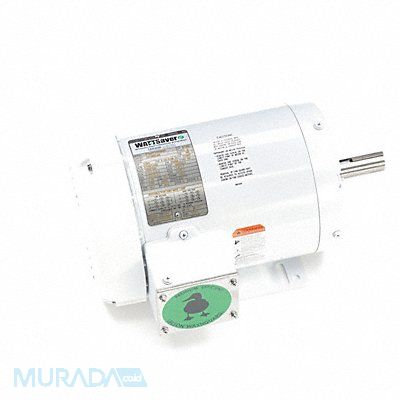

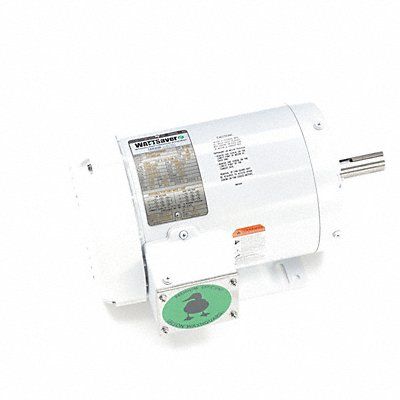

Washdown Motor Three Phase Motor Design 3-Phase 1 HP Nameplate RPM 1 760 No of Speeds 1 Voltage 230/460V AC Full Load Amps 3.2/1.60 143T Frame Usable @ 208V No Usable @ 200V No 60 Hz Motor Service Factor 1.2 Motor Thermal Protection Manual Ins. Class F Max Ambient Temp 104 Degrees F Duty Cycle Continuous NEMA Design B Removable Base No Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Rigid Base
Mfr 12186500
