| Item Reference | 60PV24 |
|---|---|
| Brand | LEESON |
| Weight (lb) | 73 |
| Length (in) | 23.38 |
| Width (in) | 12.38 |
| Height (in) | 10.75 |
| Harmonization Code | 8501322000 |
| Country of Origin | United States |

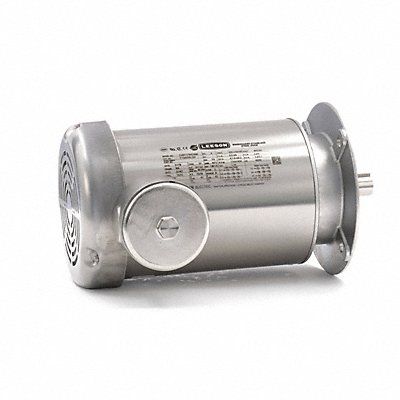

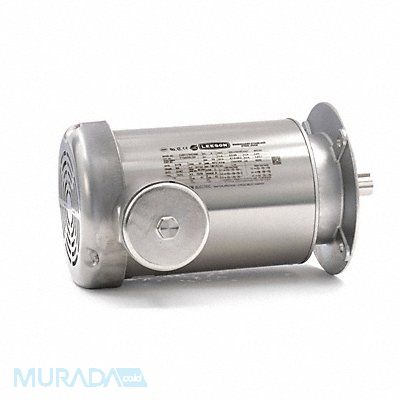

Washdown Motor Three Phase Motor Design 3-Phase 2 HP Nameplate RPM 1 745 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 6.0-5.8/2.9 90L Frame Usable @ 208V Yes Usable @ 200V No 60 Hz Motor Service Factor 1.2 Motor Thermal Protection T-Stat Ins. Class F Max Ambient Temp 104 Degrees F Duty Cycle Continuous NEMA Design B Removable Base Yes Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Face
Mfr 11950900
