| Item Reference | 60PV12 |
|---|---|
| Brand | LEESON |
| Weight (lb) | 60 |
| Length (in) | 19.5 |
| Width (in) | 10.44 |
| Height (in) | 10.88 |
| Harmonization Code | 8501524000 |
| Country of Origin | United States |

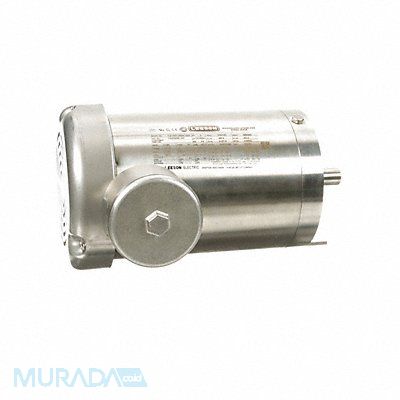

Washdown Motor Three Phase Motor Design 3-Phase 3 HP Nameplate RPM 3 490 No of Speeds 1 Voltage 230/460V AC Full Load Amps 8.0/4.0 145TC Frame Usable @ 208V No Usable @ 200V No 60/50 Hz Motor Service Factor 1.2 Motor Thermal Protection Manual Ins. Class F Max Ambient Temp 40 Degrees F Duty Cycle Continuous NEMA Design B Removable Base Yes Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Face
Mfr 12220600
