| Item Reference | 52ZW30 |
|---|---|
| Brand | LEESON |
| Weight (lb) | 62.3 |
| Length (in) | 18.4 |
| Width (in) | 13.7 |
| Height (in) | 14 |
| Harmonization Code | 8501524000 |
| Country of Origin | United States |

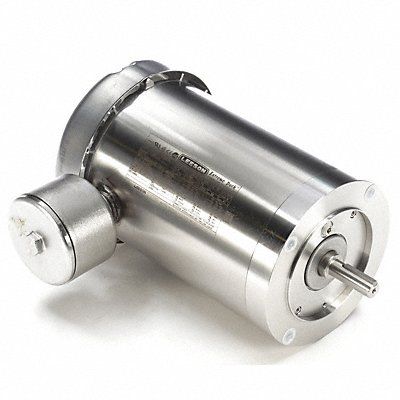

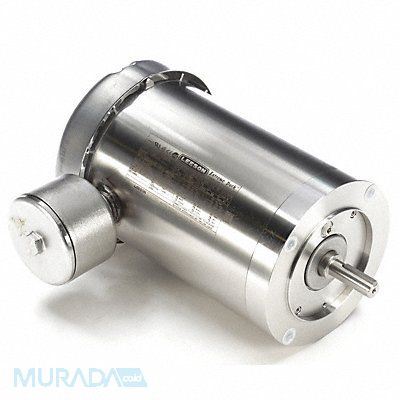

Washdown Motor Three Phase Motor Design 3-Phase 2 HP Nameplate RPM 1 745 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 6.0-5.8/2.9 56C Frame Usable @ 208V Yes Usable @ 200V No 60/50 Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CCW CW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Face Motor Mounting Position Horizontal
