| Item Reference | 48ZH99 |
|---|---|
| Brand | LEESON |
| Weight (lb) | 173 |
| Length (in) | 22.94 |
| Width (in) | 16.44 |
| Height (in) | 15 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |

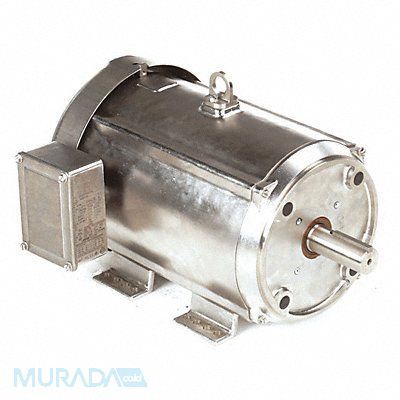

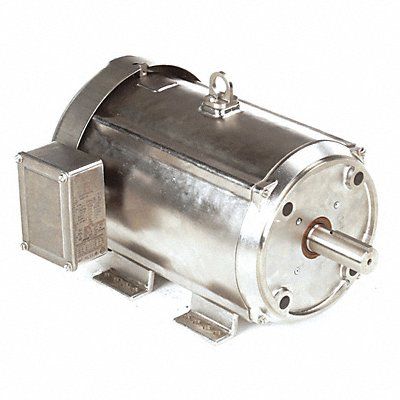

Washdown Motor Three Phase Motor Design 3-Phase 10 HP Nameplate RPM 1 765 No of Speeds 1 Voltage 230/460V AC Full Load Amps 26.8/13.4 215TC Frame Usable @ 208V No Usable @ 200V No 60/50 Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Removable Base No Motor Shaft Rotation CCW CW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Rigid Base
