| Item Reference | 48ZH77 |
|---|---|
| Brand | LEESON |
| Weight (lb) | 49 |
| Length (in) | 15.16 |
| Width (in) | 11.02 |
| Height (in) | 9.65 |
| Harmonization Code | 8501524000 |
| Country of Origin | China |

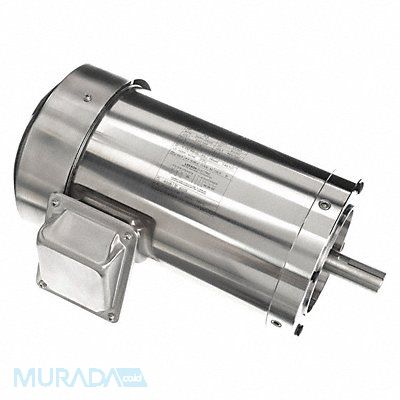

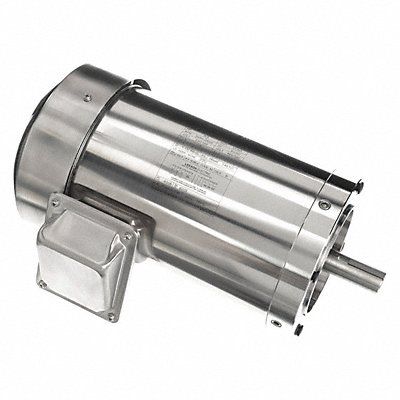

Washdown Motor Three Phase Motor Design 3-Phase 3 HP Nameplate RPM 3 470 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 8.0-7.2/3.6 145TC Frame Usable @ 208V Yes Usable @ 200V No 60/50 Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CWSE Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Face Motor Mounting Position Horizontal
Mfr 19154200
