| Item Reference | 48ZH66 |
|---|---|
| Brand | LEESON |
| Weight (lb) | 30.25 |
| Length (in) | 11.7 |
| Width (in) | 11.6 |
| Height (in) | 10.1 |
| Harmonization Code | 8501514040 |
| Country of Origin | China |

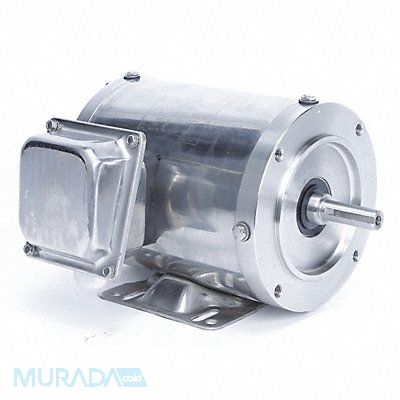

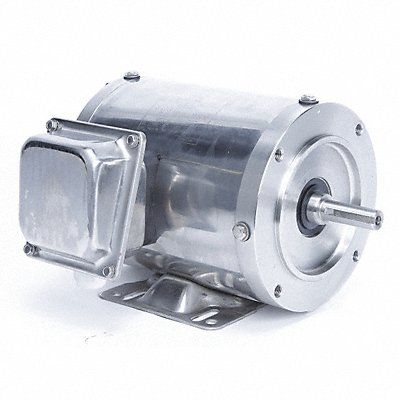

Washdown Motor Three Phase Motor Design 3-Phase 3/4 HP Nameplate RPM 3 450 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 2.2-2.00/1.00 56C Frame Usable @ 208V Yes Usable @ 200V No 60/50 Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CCW CW Motor Enclosure Design Totally Enclosed Nonventilated Motor Mounting Type Face/Base
Mfr 19120600
