| Item Reference | 48ZH50 |
|---|---|
| Brand | LEESON |
| Weight (lb) | 36.3 |
| Length (in) | 14.2 |
| Width (in) | 10.7 |
| Height (in) | 10.9 |
| Harmonization Code | 8501406040 |
| Country of Origin | China |

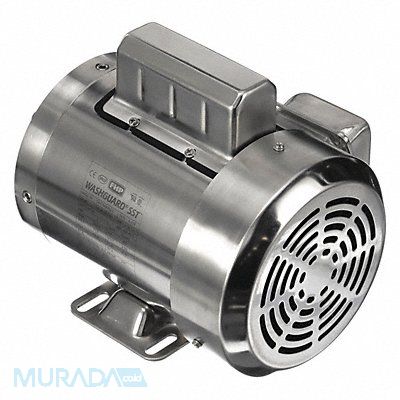

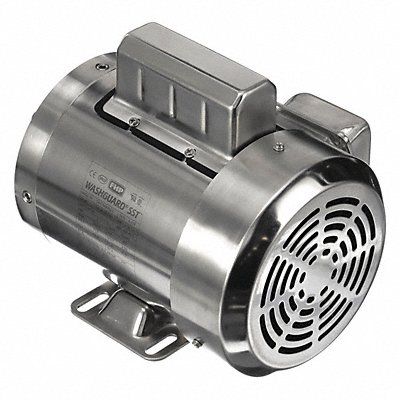

Washdown Motor Single Phase Motor Design Capacitor-Start 1 HP Nameplate RPM 3 450 No of Speeds 1 Voltage 115/230V AC Full Load Amps 12.4/6.2 56C Frame Usable @ 208V No Usable @ 200V No 60 Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design N Motor Shaft Rotation CCW CW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Face/Base Motor Mounting Position Horizontal
