| Item Reference | 48ZG14 |
|---|---|
| Brand | LEESON |
| Weight (lb) | 183 |
| Length (in) | 23.3 |
| Width (in) | 17.2 |
| Height (in) | 19.4 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |

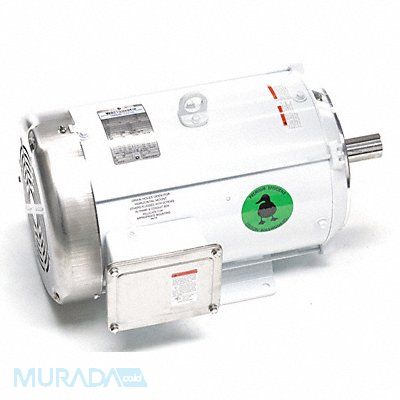

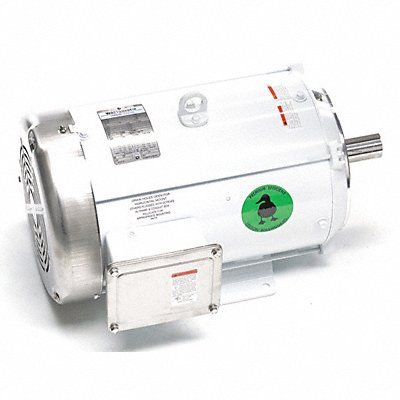

Washdown Brake Motor Three Phase Motor Design 3-Phase 10 HP Nameplate RPM 1 765 No of Speeds 1 Voltage 230/460V AC Full Load Amps 26.8/13.4 215TC Frame Usable @ 208V No Usable @ 200V No 60/50 Hz Motor Service Factor 1.25 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Removable Base No Motor Shaft Rotation CWSE Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Rigid Base
