| Item Reference | 48ZG02 |
|---|---|
| Brand | LEESON |
| Weight (lb) | 45 |
| Length (in) | 14.7 |
| Width (in) | 10.8 |
| Height (in) | 11.5 |
| Harmonization Code | 8501524000 |
| Country of Origin | United States |

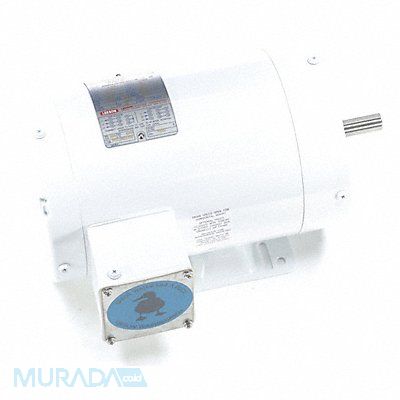

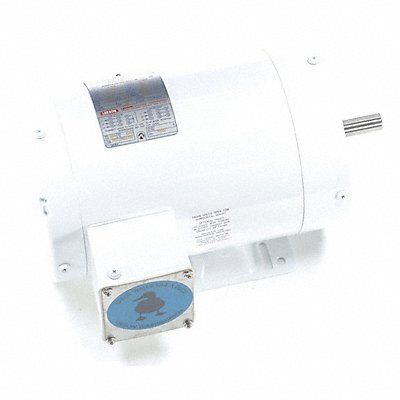

Washdown Motor Three Phase Motor Design 3-Phase 1 1/2 HP Nameplate RPM 3 450 No of Speeds 1 Voltage 230/460V AC Full Load Amps 1.90 56HC Frame Usable @ 208V No Usable @ 200V No 60 Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Removable Base No Motor Shaft Rotation CCW CW Motor Enclosure Design Totally Enclosed Nonventilated Motor Mounting Type Rigid Base
