| Item Reference | 48ZF92 |
|---|---|
| Brand | LEESON |
| Weight (lb) | 25.2 |
| Length (in) | 14.7 |
| Width (in) | 10.8 |
| Height (in) | 11.5 |
| Harmonization Code | 8501524000 |
| Country of Origin | United States |

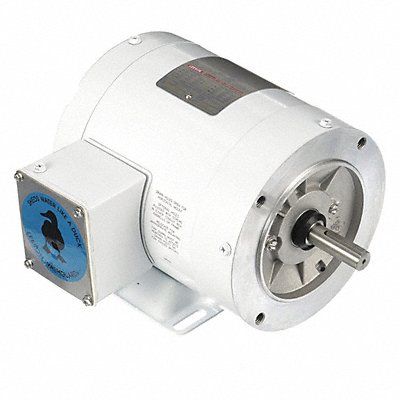

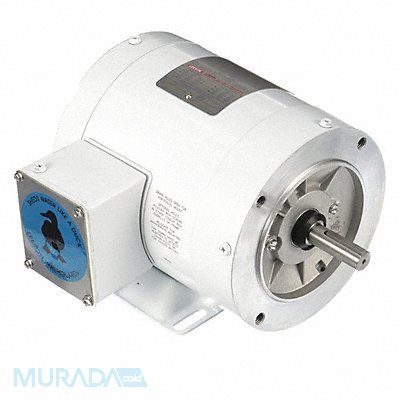

Washdown Motor Three Phase Motor Design 3-Phase 1/2 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 1.80 56C Frame Usable @ 208V Yes Usable @ 200V No 60 Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Removable Base No Motor Shaft Rotation CCW CW Motor Enclosure Design Totally Enclosed Nonventilated Motor Mounting Type Face/Base
Mfr 11358600
