| Item Reference | 48ZF76 |
|---|---|
| Brand | LEESON |
| Weight (lb) | 151 |
| Length (in) | 22.94 |
| Width (in) | 16.44 |
| Height (in) | 15 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |

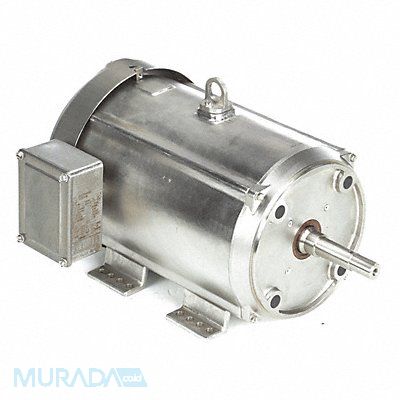

Washdown Motor Three Phase Motor Design 3-Phase 7 1/2 HP Nameplate RPM 3 525 No of Speeds 1 Voltage 230/460V AC Full Load Amps 18.6/9.3 213JM Frame Usable @ 208V No Usable @ 200V No 60/50 Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CWSE Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
