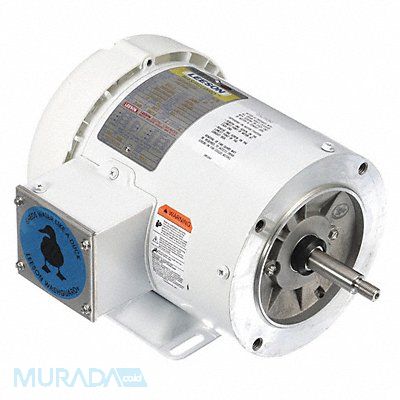

LEESON Motor 1 1/2 HP 3490 56J 208-230/460V, 48ZF59

backorder
item
18FWD1047
Mfr 11945800
Brand
Rp. 32,613,500.00
item
Washdown Jet Pump Motor Three Phase Motor Design 3-Phase 1 1/2 HP Nameplate RPM 3 490 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 4.4-4.0/2.00 56J Frame Usable @ 208V Yes Usable @ 200V No 60/50 Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Removable Base No Motor Shaft Rotation CWLE Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Face/Base
Mfr 11945800
More Information
Item Reference48ZF59
BrandLEESON
Weight (lb)34.1
Length (in)15
Width (in)11
Height (in)11.8
Harmonization Code8501524000
Country of OriginUnited States
Washdown Jet Pump Motor Three Phase Motor Design 3-Phase 1 1/2 HP Nameplate RPM 3 490 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 4.4-4.0/2.00 56J Frame Usable @ 208V Yes Usable @ 200V No 60/50 Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Removable Base No Motor Shaft Rotation CWLE Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Face/Base
Mfr 11945800
