| Item Reference | 48ZF23 |
|---|---|
| Brand | LEESON |
| Weight (lb) | 24.55 |
| Length (in) | 14.8 |
| Width (in) | 11 |
| Height (in) | 11.7 |
| Harmonization Code | 8501404040 |
| Country of Origin | United States |

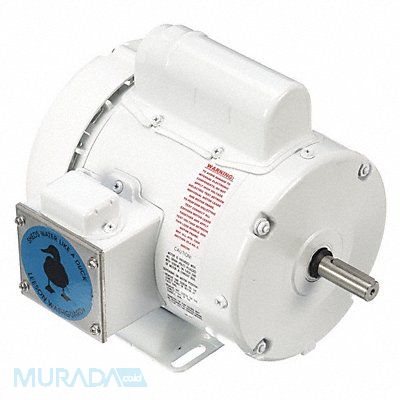

Washdown Motor Single Phase Motor Design Capacitor-Start 1/2 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 115/208-230V AC Full Load Amps 4.3 56 Frame Usable @ 208V Yes Usable @ 200V No 60 Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design N Removable Base No Motor Shaft Rotation CCW CW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Rigid Base
Mfr 11243100
