| Item Reference | 48ZG45 |
|---|---|
| Brand | LEESON |
| Weight (lb) | 82.1 |
| Length (in) | 18.2 |
| Width (in) | 13.6 |
| Height (in) | 14 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |

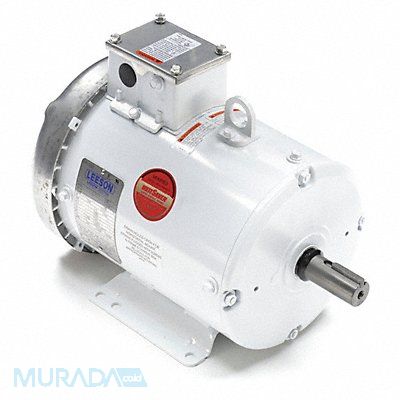

Feather Picker Motor Three Phase Motor Design 3-Phase 2 HP Nameplate RPM 1 175 No of Speeds 1 Voltage 230/460V AC Full Load Amps 6.4/3.2 184TZ Frame Usable @ 208V No Usable @ 200V No 60 Hz Motor Service Factor 1.5 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
