| Item Reference | 61KN05 |
|---|---|
| Brand | LEESON |
| Weight (lb) | 45.1 |
| Length (in) | 23 |
| Width (in) | 11 |
| Height (in) | 11 |
| Harmonization Code | 8501524000 |
| Country of Origin | United States |

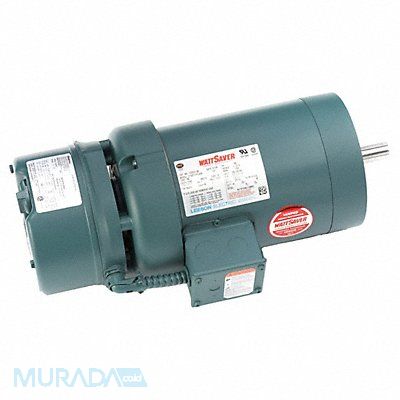

Brake Motor Three Phase Motor Design 3-Phase 1 HP Nameplate RPM 1 760 No of Speeds 1 Voltage 208-230/460V AC 1.70 Full Load Amps 143TC Frame Usable @ 208V Yes Usable @ 200V No 60 Hz Motor Service Factor 1.15 Motor Thermal Protection Thermostat Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Face Motor Mounting Position Horizontal Inverter Rated No
Mfr 12225100
