| Item Reference | 48ZG70 |
|---|---|
| Brand | LEESON |
| Weight (lb) | 100 |
| Length (in) | 22.6 |
| Width (in) | 16.6 |
| Height (in) | 16.7 |
| Harmonization Code | 8501322000 |
| Country of Origin | United States |

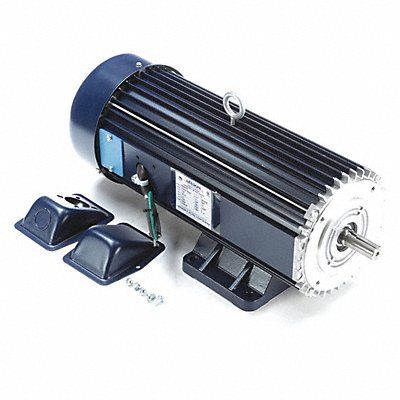

DC Permanent Magnet Motor Motor Design Permanent Magnet DC 3 HP Nameplate RPM 1 750 Voltage 180V DC 14.0 A Full Load Amps 143/5TC Frame Full Load Torque 108 in-lb Motor Thermal Protection None Ins. Class H Max Ambient Temp 40 Degrees C Motor Shaft Rotation CW/CCW Duty Cycle Continuous Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Face/Base Shaft Dia 7/8 in Motor Bearings Ball Shaft Length 2 1/2 in Brush Type External Overall Length 19 5/8 in
Mfr 10850200
