| Item Reference | 48ZG56 |
|---|---|
| Brand | LEESON |
| Weight (lb) | 20.9 |
| Length (in) | 14.8 |
| Width (in) | 10.8 |
| Height (in) | 11.3 |
| Harmonization Code | 8501314000 |
| Country of Origin | United States |

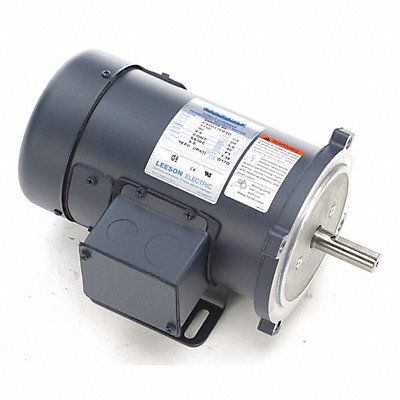

DC Permanent Magnet Motor Motor Design Permanent Magnet DC 1/4 HP Nameplate RPM 1 750 Voltage 90V DC 2.5 A Full Load Amps 56C Frame Full Load Torque 9 in-lb Motor Service Factor 1 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Motor Shaft Rotation CW/CCW Duty Cycle Continuous Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Face/Base Removable Base Yes Shaft Dia 5/8 in Motor Bearings Ball Shaft Length 1 7/8 in
Mfr 09800200
