| Item Reference | 48ZG54 |
|---|---|
| Brand | LEESON |
| Weight (lb) | 26.7 |
| Length (in) | 15.1 |
| Width (in) | 8.3 |
| Height (in) | 11.7 |
| Harmonization Code | 8501314000 |
| Country of Origin | United States |

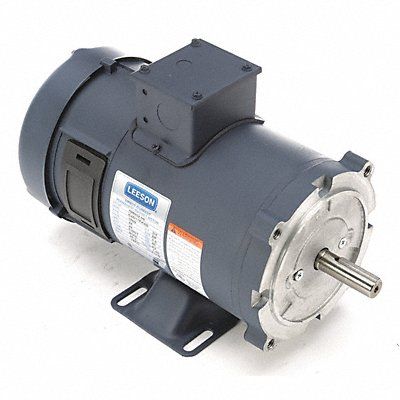

DC Permanent Magnet Motor Motor Design Permanent Magnet DC 3/4 HP Nameplate RPM 1 800 Voltage 24V DC 29.0 A Full Load Amps 56C Frame Full Load Torque 26.3 in-lb Motor Service Factor 1 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Motor Shaft Rotation CW/CCW Duty Cycle Continuous Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Face/Base Removable Base Yes Shaft Dia 5/8 in Motor Bearings Ball Shaft Length 1 7/8 in
Mfr 10805200
