| Item Reference | 46N475 |
|---|---|
| Brand | MORRILL |
| Weight (lb) | 4.3 |
| Length (in) | 10.9 |
| Width (in) | 10.9 |
| Height (in) | 6.3 |
| Harmonization Code | 8501104020 |
| Country of Origin | Mexico |

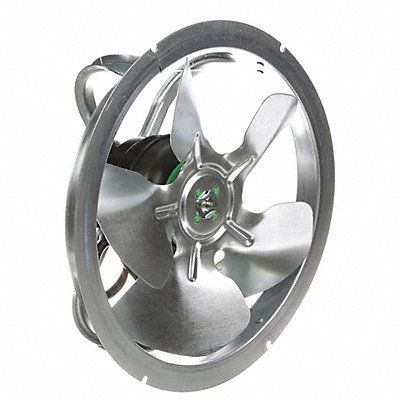

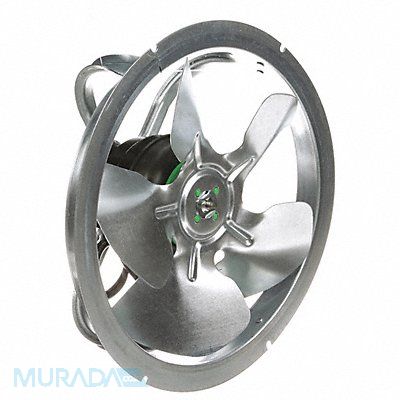

ECM Unit Bearing Motor Single Phase Motor Design ECM 1/50 HP Nameplate RPM 1 450 No of Speeds 1 Voltage 115V AC Full Load Amps 0.40 Non-Standard Frame Usable @ 208V No Usable @ 200V No Motor Thermal Protection Auto 60 Hz Hz Motor Service Factor 1 Ins. Class B Motor Shaft Rotation CWLE Max Ambient Temp 55 Degrees C Duty Cycle Continuous Lead Length 20 in Motor Enclosure Design Totally Enclosed Air-Over Motor Mounting Type Shroud Motor Mounting Position All Angle
