| Item Reference | 5UNX2 |
|---|---|
| Brand | MORRILL |
| Weight (lb) | 3.6 |
| Length (in) | 4.3 |
| Width (in) | 4.5 |
| Height (in) | 6.7 |
| Harmonization Code | 8501314000 |
| Country of Origin | Mexico |

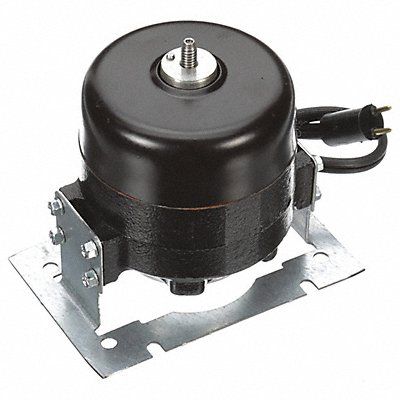

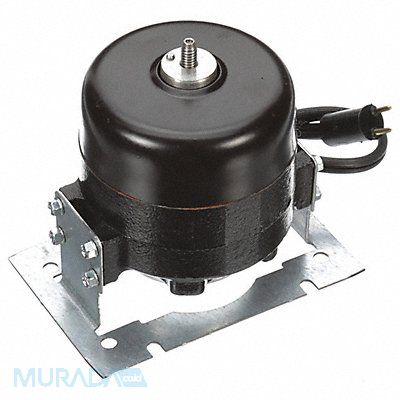

ECM Unit Bearing Motor Single Phase Motor Design ECM 1/20 HP Nameplate RPM 1 550 No of Speeds 1 Voltage 115V AC 0.90 Full Load Amps Non-Standard Frame Output Watts 38 W 60 Hz Usable @ 208V No Usable @ 200V No Motor Service Factor 1 Motor Thermal Protection Electronic Ins. Class B Duty Cycle Continuous Max Ambient Temp 55 Degrees C Motor Shaft Rotation CCWSE Motor Enclosure Design Totally Enclosed Air-Over Motor Mounting Type Rear/Foot Motor Frame Material Cast Iron
Mfr 5R022
