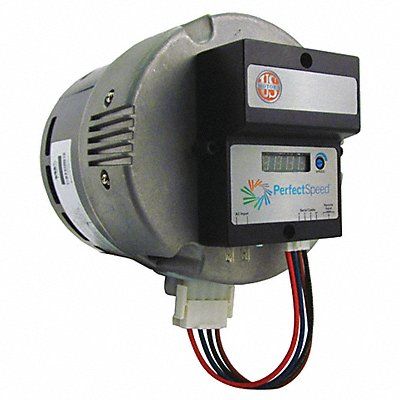

ECM Direct Drive Blower Motor Single Phase Motor Design ECM 1/2 1/3 HP Nameplate RPM 1 250 No of Speeds 1 Voltage 277V AC Full Load Amps 3.2 48Y Frame Usable @ 208V No Usable @ 200V No Motor Thermal Protection Auto 60/50 Hz Hz Motor Service Factor 1 Ins. Class B Motor Shaft Rotation CWLE Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Enclosure Design Open Air-Over Motor Mounting Type Band Motor Mounting Position Horizontal Vertical Number of Shafts 1
Mfr 7630UI
| Item Reference | 54ZX63 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 14 |
| Length (in) | 15.3 |
| Width (in) | 8.4 |
| Height (in) | 10.9 |
| Harmonization Code | 8501404040 |
| Country of Origin | Mexico |
