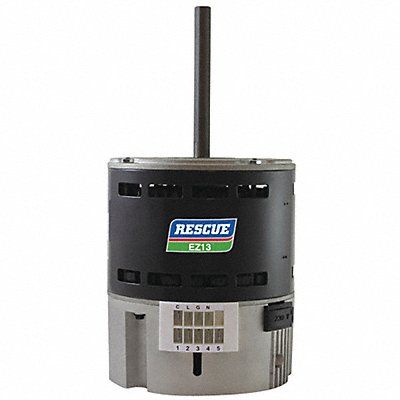

ECM Direct Drive Blower Motor Single Phase Motor Design ECM 3/4 HP Nameplate RPM 1 075 No of Speeds 1 Voltage 115/208-230V AC Full Load Amps 9.3/5.8-5.4 48Y Frame Usable @ 208V Yes Usable @ 200V No Motor Thermal Protection Auto 60/50 Hz Hz Motor Service Factor 1 Ins. Class B Motor Shaft Rotation CW/CCW Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Enclosure Design Open Air-Over Motor Mounting Type Band Motor Mounting Position Horizontal Number of Shafts 1
Mfr 5642
| Item Reference | 54ZX58 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 15.3 |
| Length (in) | 15.8 |
| Width (in) | 7.1 |
| Height (in) | 6.9 |
| Harmonization Code | 8501404040 |
| Country of Origin | Mexico |
