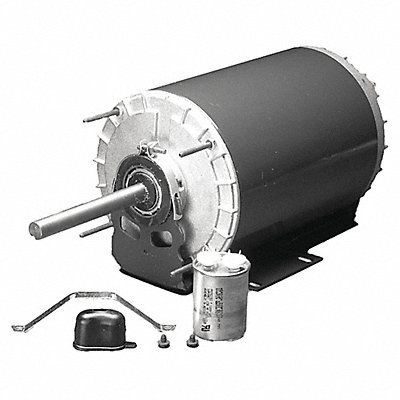

Motor Single Phase Motor Design Capacitor-Start 1 HP Nameplate RPM 1 075 No of Speeds 1 Voltage 208-230/460V AC 5.1/2.6 Full Load Amps 56 Frame 60 Hz Usable @ 208V Yes Usable @ 200V No Motor Service Factor 1 Motor Thermal Protection Auto Ins. Class B Duty Cycle Continuous Max Ambient Temp 140 Degrees F Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Air-Over Motor Mounting Type Cradle Base Motor Frame Material Aluminum
Mfr 2686
| Item Reference | 56JC96 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 41.6 |
| Length (in) | 18.5 |
| Width (in) | 10.5 |
| Height (in) | 10.875 |
| Harmonization Code | 8501406040 |
| Country of Origin | Mexico |
