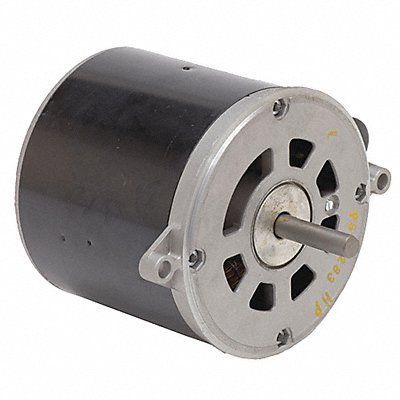

Motor Single Phase Motor Design Split-Phase 1/3 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 115V AC 4.8 Full Load Amps 56N Frame 60 Hz Replacement For 56JA89 Usable @ 208V No Usable @ 200V No Motor Service Factor 1 Motor Thermal Protection Manual Ins. Class B Duty Cycle Continuous Max Ambient Temp 104 Degrees F Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Nonventilated Motor Mounting Type N-Flange Motor Frame Material Steel Inverter Rated No
Mfr 3580
| Item Reference | 56JA89 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 28.5 |
| Length (in) | 12.75 |
| Width (in) | 8.25 |
| Height (in) | 8.125 |
| Harmonization Code | 8501404040 |
| Country of Origin | Mexico |
