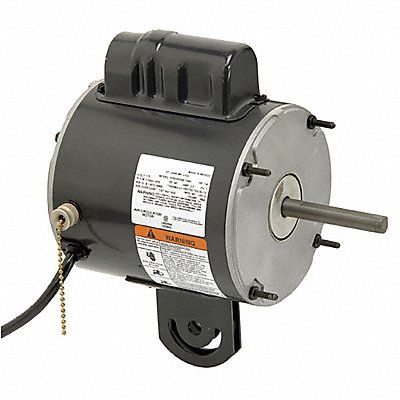

Motor Single Phase Motor Design Permanent Split Capacitor 1/4 HP Nameplate RPM 1 075 No of Speeds 2 Voltage 115V AC 4.2 Full Load Amps 48YZ Frame 60 Hz Replacement For 56JA29 Usable @ 208V No Usable @ 200V No Motor Service Factor 1 Motor Thermal Protection Auto Ins. Class A Duty Cycle Continuous Max Ambient Temp 104 Degrees F Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Air-Over Motor Mounting Type Yoke Motor Frame Material Steel Inverter Rated No
Mfr 1917
| Item Reference | 56JA29 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 16.4 |
| Length (in) | 15.5 |
| Width (in) | 11 |
| Height (in) | 11 |
| Harmonization Code | 8501404040 |
| Country of Origin | Mexico |
