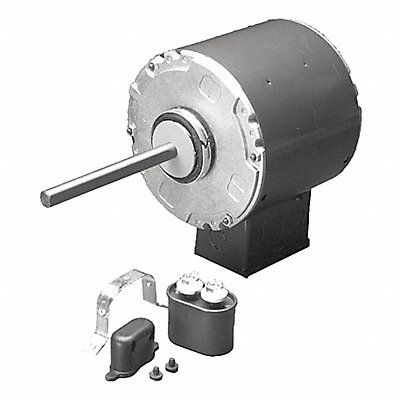

Motor Single Phase Motor Design Permanent Split Capacitor 1/2 HP Nameplate RPM 1 075 No of Speeds 1 Voltage 208-230/460V AC 3.2-3.1/1.6 Full Load Amps 48 Frame 60 Hz Replacement For 56HZ77 Usable @ 208V Yes Usable @ 200V No Motor Service Factor 1 Motor Thermal Protection Auto Ins. Class B Duty Cycle Continuous Max Ambient Temp 140 Degrees F Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Nonventilated Motor Mounting Type Ring Motor Frame Material Steel
Mfr 2201
| Item Reference | 56HZ77 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 20.6 |
| Length (in) | 15.5 |
| Width (in) | 7 |
| Height (in) | 7 |
| Harmonization Code | 8501404040 |
| Country of Origin | Mexico |
