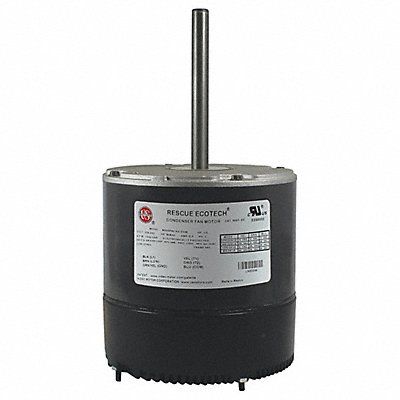

Condenser Fan Motor Single Phase Motor Design ECM 1/3 HP Nameplate RPM 1 075/825 No of Speeds 2 Voltage 208-230V AC 2.5 Full Load Amps 48Y Frame 60/50 Hz Usable @ 208V Yes Usable @ 200V No Motor Service Factor 1 Motor Thermal Protection Auto Ins. Class B Duty Cycle Continuous Max Ambient Temp 60 Degrees C Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Air-Over Motor Mounting Type Stud Motor Mounting Position Vertical Shaft Down Shaft Length 4 1/2 in
Mfr 5561EO
| Item Reference | 54ZX56 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 12.1 |
| Length (in) | 13.1 |
| Width (in) | 8.2 |
| Height (in) | 7.1 |
| Harmonization Code | 8501404040 |
| Country of Origin | Mexico |
