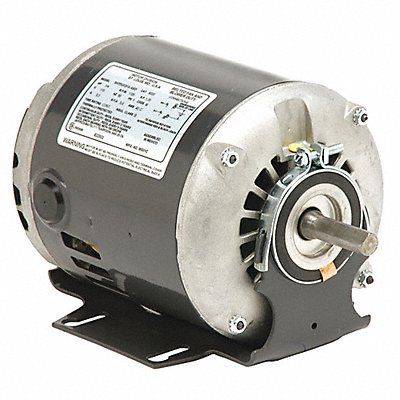

Belt Drive Motor Single Phase Motor Design Split-Phase 3/4 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 115/230V AC 11.2/5.6 Full Load Amps 56 Frame Usable @ 208V No Usable @ 200V No 60 Hz Motor Service Factor 1.25 Motor Thermal Protection Auto Ins. Class B Max Ambient Temp 104 Degrees F Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Dripproof Motor Mounting Type Cradle Base Motor Mounting Position Horizontal Motor Frame Material Steel Shaft Dia 5/8 in
Mfr 4115
| Item Reference | 56JC88 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 25 |
| Length (in) | 12.75 |
| Width (in) | 8.25 |
| Height (in) | 8.125 |
| Harmonization Code | 8501404040 |
| Country of Origin | Mexico |
