| Item Reference | 56JC86 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 14.4 |
| Length (in) | 13 |
| Width (in) | 7 |
| Height (in) | 7 |
| Harmonization Code | 8501404040 |
| Country of Origin | Mexico |

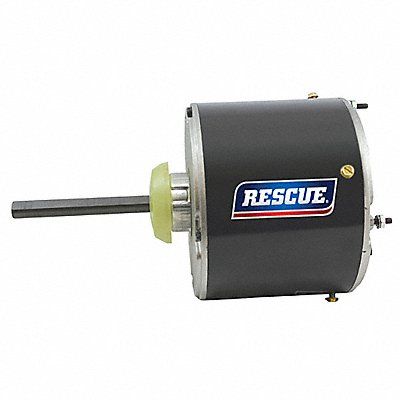

Condenser Motor Single Phase Motor Design Capacitor-Start 1/3 1/6 HP Nameplate RPM 1 075 No of Speeds 2 Voltage 208-230V AC 2.6/1.80 Full Load Amps 48Y Frame Usable @ 208V Yes Usable @ 200V No 60 Hz Motor Service Factor 1.25 Motor Thermal Protection Auto Ins. Class F Max Ambient Temp 158 Degrees F Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Air-Over Motor Mounting Type Stud Motor Mounting Position All Angle
Mfr 5462H
