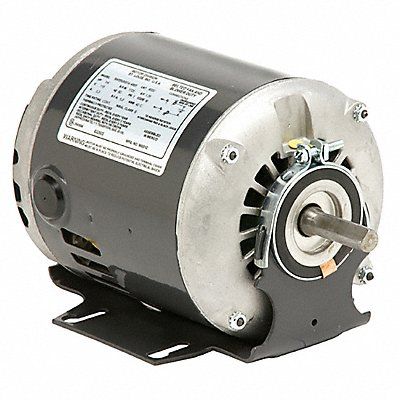

Belt Drive Motor Single Phase Motor Design Split-Phase 1/4 HP Nameplate RPM 1 140 No of Speeds 1 Voltage 115V AC 5.4 Full Load Amps 56 Frame Usable @ 208V No Usable @ 200V No 60 Hz Motor Service Factor 1.35 Motor Thermal Protection None Ins. Class B Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Dripproof Motor Mounting Type Cradle Base Motor Mounting Position All Angle Motor Frame Material Steel
Mfr D14B3N9
| Item Reference | 55MM46 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 22 |
| Length (in) | 15.32 |
| Width (in) | 8.25 |
| Height (in) | 11 |
| Harmonization Code | 8501404040 |
| Country of Origin | Mexico |
