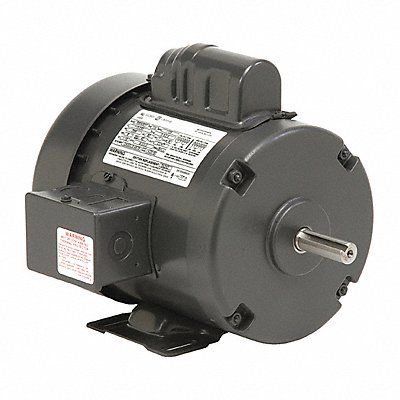

Belt Drive Motor Single Phase Motor Design Capacitor-Start 1 1/2 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 115/208-230V AC 14.4/8.0-7.2 Full Load Amps 56H Frame Usable @ 208V Yes Usable @ 200V No 60 Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class B Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Rigid Base Motor Mounting Position All Angle
Mfr T32C2JH
| Item Reference | 55ML76 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 32 |
| Length (in) | 18.5 |
| Width (in) | 12 |
| Height (in) | 12 |
| Harmonization Code | 8501406040 |
| Country of Origin | Mexico |
