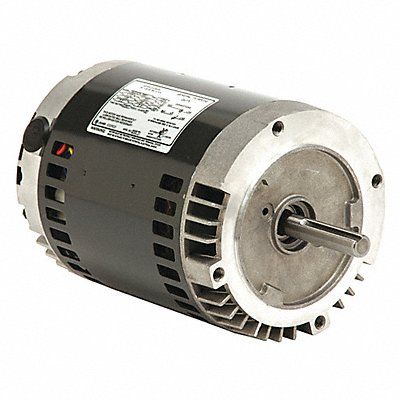

Motor Single Phase Motor Design Capacitor-Start/Run 1/3 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 115/230V AC Full Load Amps 3.8/1.9 56C Frame Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1.35 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class B Motor Enclosure Design Open Dripproof Motor Shaft Rotation CW/CCW Motor Mounting Type Face Motor Mounting Position Horizontal Motor Shaft Design Keyed
Mfr D13CP2PCR
Item Reference | 56JD13 |
---|---|
Brand | U.S. MOTORS |
Weight (lb) | 18 |
Length (in) | 15.3 |
Width (in) | 10.5 |
Height (in) | 10.875 |
Harmonization Code | 8501404040 |
Country of Origin | Mexico |
