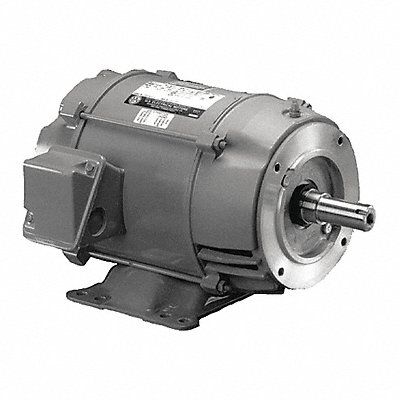

Motor Three Phase Motor Design 3-Phase 1 HP Nameplate RPM 1 755 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 3.2-3.1/1.5 143TC Frame Usable @ 208V Yes Usable @ 200V No Hz 60/50 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Open Dripproof Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Inverter Rated Yes
Mfr D1P2DC
| Item Reference | 56JC61 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 30 |
| Length (in) | 15.5 |
| Width (in) | 12.5 |
| Height (in) | 9.125 |
| Harmonization Code | 8501516040 |
| Country of Origin | Mexico |
