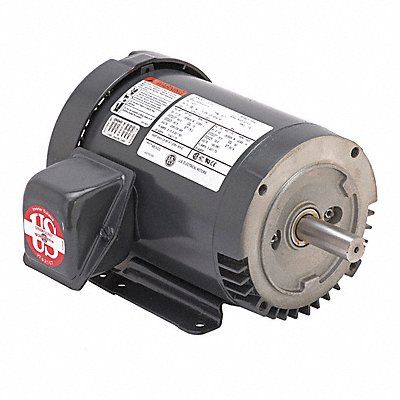

Motor Three Phase Motor Design 3-Phase 1 1/2 HP Nameplate RPM 1 755 No of Speeds 1 Voltage 575V AC Full Load Amps 1.7 145TC Frame Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1.25 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Inverter Rated Yes
Mfr U32P2GC
| Item Reference | 56JA68 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 35 |
| Length (in) | 15.5 |
| Width (in) | 12.5 |
| Height (in) | 9.125 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |
