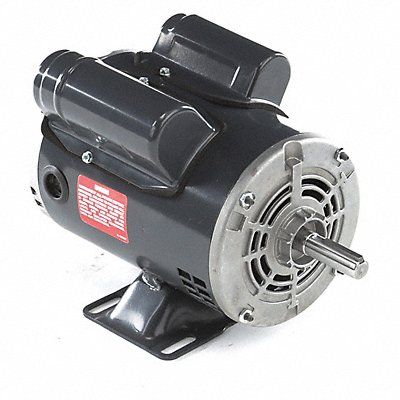

General Purpose Motor Single Phase Motor Design Capacitor-Start 1/3 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 115/208-230V AC Full Load Amps 3.9/2.00-1.90 56 Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Motor Service Factor 1.35 Max Ambient Temp 40 Degrees C Motor Thermal Protection Manual Duty Cycle Continuous Ins. Class B Motor Enclosure Design Open Air-Over Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position All Angle
Mfr D13CPM2P
| Item Reference | 55MM51 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 16.4 |
| Length (in) | 12.75 |
| Width (in) | 8.25 |
| Height (in) | 11 |
| Harmonization Code | 8501404040 |
| Country of Origin | Mexico |
