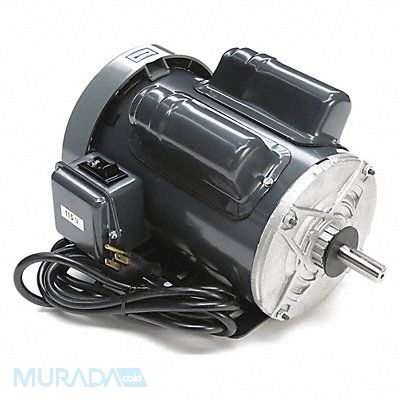

General Purpose Motor Single Phase Motor Design Capacitor-Start 1 1/2 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 115/208-230V AC Full Load Amps 14.4/8.0-7.2 56H Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection Manual Duty Cycle Continuous Ins. Class B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position All Angle
Mfr T32CM2JH
| Item Reference | 55MM38 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 32 |
| Length (in) | 18.5 |
| Width (in) | 12 |
| Height (in) | 12 |
| Harmonization Code | 8501406040 |
| Country of Origin | Mexico |
