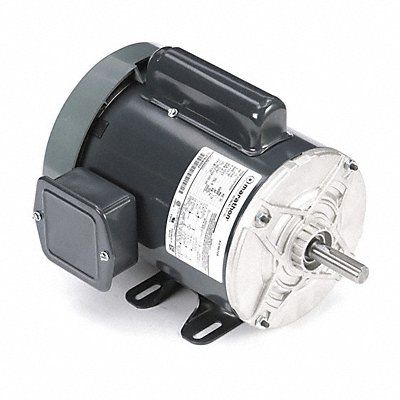

General Purpose Motor Single Phase Motor Design Capacitor-Start 1/3 HP Nameplate RPM 1 140 No of Speeds 1 Voltage 115/208-230V AC Full Load Amps 6.8/3.4-3.4 56 Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position All Angle
Mfr T13C3J
| Item Reference | 55MM25 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 32 |
| Length (in) | 15.32 |
| Width (in) | 10.5 |
| Height (in) | 10.875 |
| Harmonization Code | 8501404040 |
| Country of Origin | Mexico |
