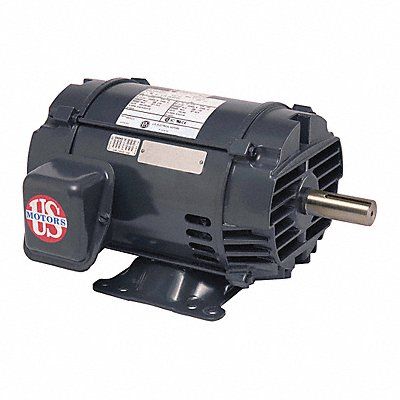

General Purpose Motor Three Phase Motor Design 3-Phase 2 HP Nameplate RPM 3 450 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 6.0-5.4/2.7 56H Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Open Air-Over Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position All Angle
Mfr D2P1AH
| Item Reference | 55ML88 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 32 |
| Length (in) | 16.32 |
| Width (in) | 8.25 |
| Height (in) | 11 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |
