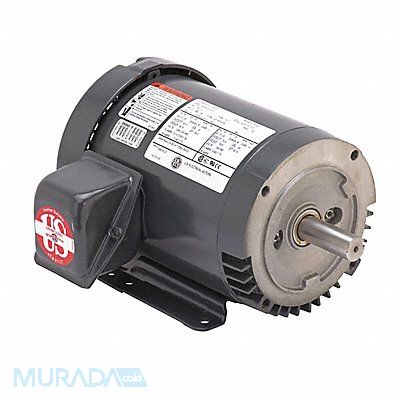

General Purpose Motor Three Phase Motor Design 3-Phase 3/4 HP Nameplate RPM 3 500 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 2.4-2.2/1.10 56C Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Motor Service Factor 1.25 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Totally Enclosed Air-Over Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base
Mfr U34S1AC
| Item Reference | 55ML74 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 26 |
| Length (in) | 15.5 |
| Width (in) | 12.5 |
| Height (in) | 9.125 |
| Harmonization Code | 8501514040 |
| Country of Origin | Mexico |
