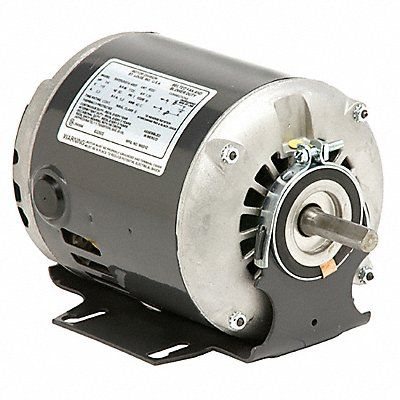

General Purpose Motor Single Phase Motor Design Split-Phase 1/4 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 115V AC Full Load Amps 5.4 56Z Frame Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class A/B Motor Enclosure Design Open Air-Over Motor Shaft Rotation CW/CCW Motor Mounting Type Cradle Base Motor Mounting Position All Angle Inverter Rated No
Mfr D14B2NZA9
| Item Reference | 55ML72 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 17 |
| Length (in) | 13 |
| Width (in) | 9.125 |
| Height (in) | 9.625 |
| Harmonization Code | 8501404040 |
| Country of Origin | Mexico |
