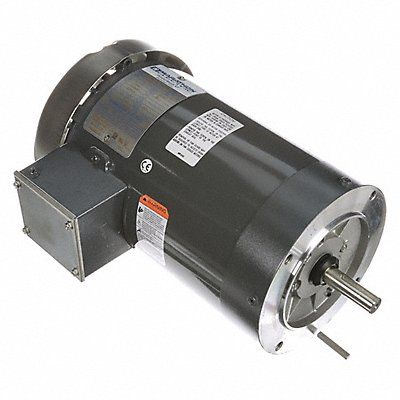

General Purpose Motor Three Phase Motor Design 3-Phase 2 HP Nameplate RPM 1 750 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 5.9-5.7/2.8 56C Frame Usable @ 208V Yes Usable @ 200V No Hz 60/50 Motor Service Factor 1.25 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Totally Enclosed Air-Over Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base
Mfr U2P2DFCR
| Item Reference | 55ML30 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 35 |
| Length (in) | 26.5 |
| Width (in) | 16.5 |
| Height (in) | 15 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |
