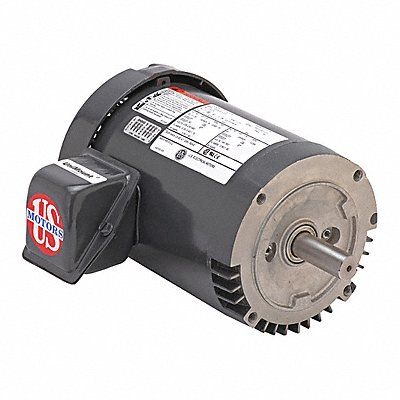

General Purpose Motor Three Phase Motor Design 3-Phase 1 HP Nameplate RPM 1 755 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 3.1/1.50 143TC Frame Hz 60 Motor Service Factor 1.25 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Face Motor Mounting Position Horizontal Inverter Rated Yes Motor Shaft Design Keyed
Mfr U1P2DCR
| Item Reference | 52AZ43 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 40.05 |
| Length (in) | 15.5 |
| Width (in) | 12.6 |
| Height (in) | 19.6 |
| Harmonization Code | 8501516040 |
| Country of Origin | Mexico |
